　Excavation, Shaping and Cutting of high slopes

　　■ Rock Climbing Machine (Excavation method using RCM01, 03, 06, and 12)

We perform cutting, excavation, shaping, and extraction of high slopes, demolition of existing mortar, and demolition of concrete crib works.

　radio-controlled operation only.
ＲＣＭ03 Ｂ


The RCM03B and RCM12B are for radio-controlled operation only.　As shown in the photo on the right, the operator steers at a distance.　It is a machine that shows its true potential at sites where collapsing mountains and falling rocks frequently occur.

 ＲＣＭ03Ｂ Ｍｏｖｉｅ  ＲＣＭ12 Ｂ
ＲＣＭ03Ｂ Photo

ＲＣＭ12Ｂ Ｍｏｖｉｅ

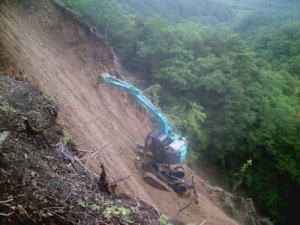

RCM12Ｂ Photo
RCM01
【specification】

Gross weight of machine

 　1,650kg
　Length 　5,200mm
　Height 　2,200mm
　Width 1,000mm/1,200mm
　Bucket capacity 　0.028㎥(JIS)
　Climbing angle 　0°～80°

To the top of the page
RCM03
【specification】

Gross weight of machine

 　5,670kg
　Length 　5,200mm
　Height 　3,030mm
　Width 　1,980mm
　Bucket capacity 　0.10㎥(JIS)
　Climbing angle 　0°～80°
To the top of the page
RCM06
【specification】

Gross weight of machine

 　8,775kg
　Length 　5,900mm
　Height 　3,080mm
　Width 　2,780mm
　Bucket capacity 　 0.28㎥
　Climbing angle 　0°～80°

To the top of the page

RCM12
【specification】

Gross weight of machine

 　20,000kg
　Length 　9,000mm
　Height 　3,340mm
　Width 　3,800mm
　Bucket capacity 　0.45㎥
　Climbing angle 　0°～80°

To the top of the page

RCM20
【specification】

Gross weight of machine

 　30,000㎏
　Length 　7,700mm
　Height 　3,600mm
　Width 　3,040mm
　Bucket capacity 　0.7㎥
　Climbing angle 　0°～80°

To the top of the page
